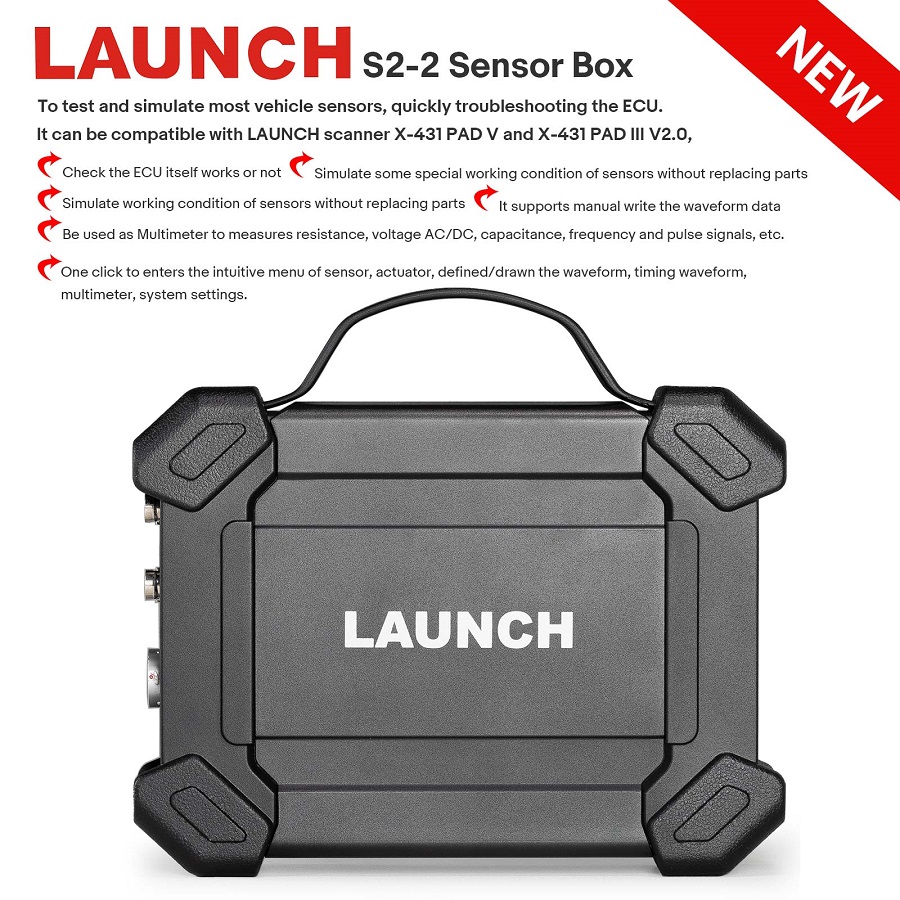

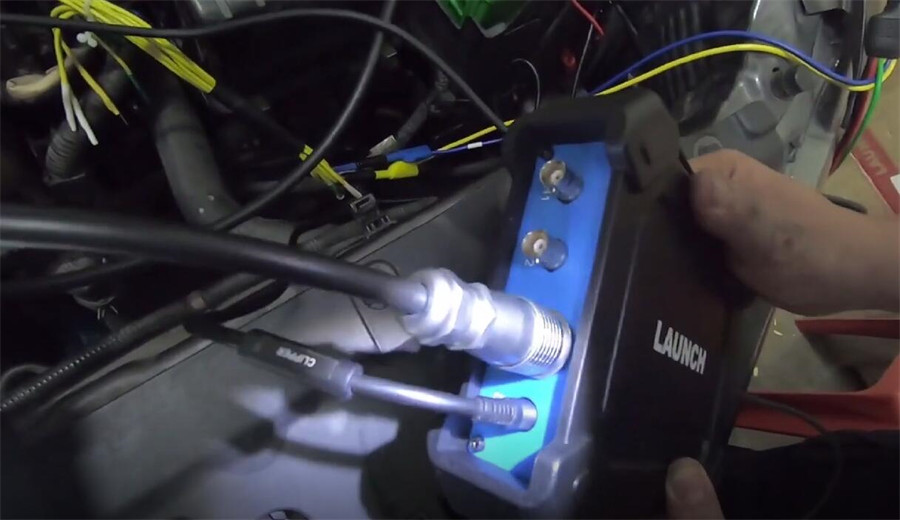

LAUNCH S2-2 Sensor box module is specially developed for diagnosing/testing/simulating most vehicle sensor faults. With its help, users can easily and quickly diagnose and simulate the sensor to rapidly troubleshoot the ECU.

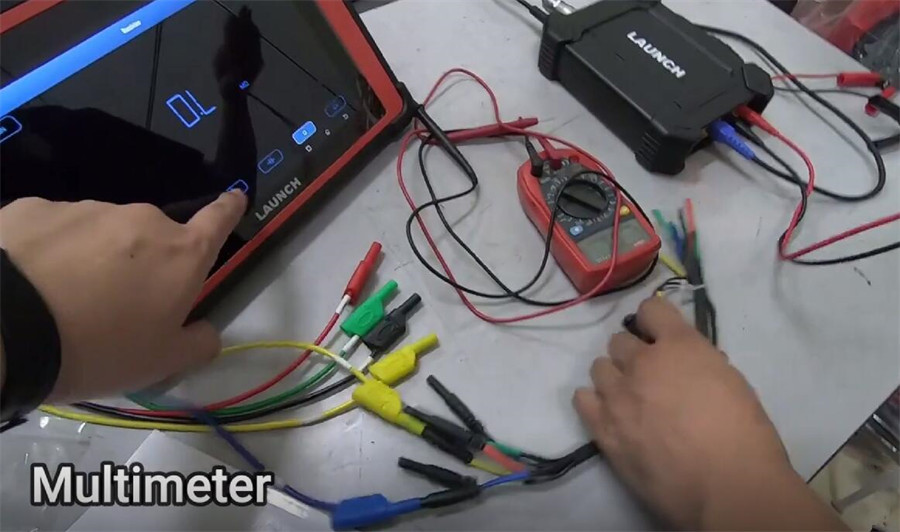

At the same time, the LAUNCH S2-2 Sensor box module also supports the vehicle multimeter function. Through this function, users can test voltage, resistance, and capacitance. The function uses the same hardware device as the sensor module.

Development Backgrounds:
The sensor is the signal input device of the vehicle ECU. It converts vehicle operating parameters such as vehicle speed, coolant temperature, engine speed, air flow, and throttle opening into electrical signals and sends them to the vehicle ECU. Then, the vehicle ECU adjusts the engine running status to maintain the engine in optimal condition.

X431 S2-2 Sensorbox Main functions:

• ECU Troubleshooting and Diagnostics
• A unique feature is the ability to simulate of “hand-drawn” signal.
• Test and simulate most vehicle sensors, quickly troubleshooting the ECU.
• Simulate some special working condition of sensors without replacing parts

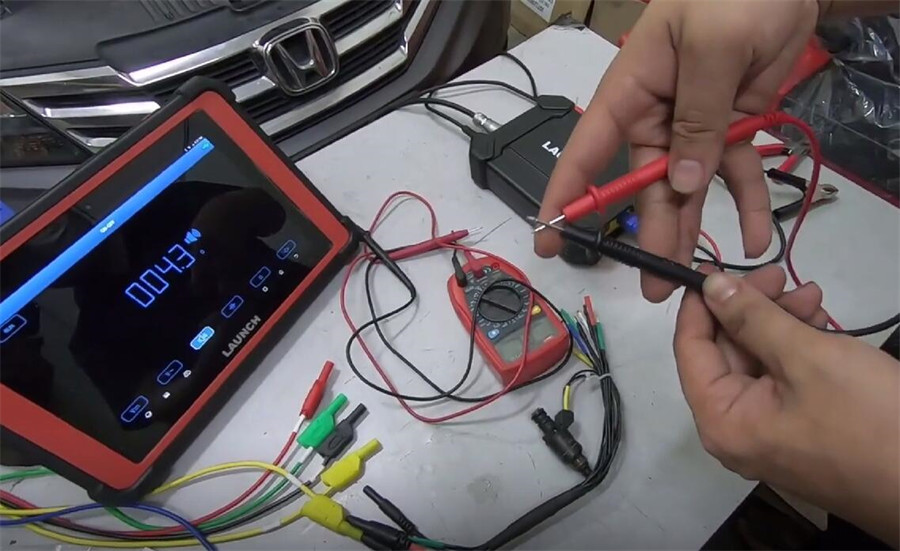

• Be used as Multimeter to measures resistance, voltage AC/DC, capacitance, frequency and pulse signals, etc.
• Wave forms can be altered or made from scratch using nothing more than your finger tip and the screen
• Allows you to test DC voltage, fixed frequency, predefined waveforms and hand drawn waveforms
• Allows the user to substitute known good waveforms for isolated elements that could not otherwise have been authenticated
• Simulation of DC signal, pulse signal, predetermined waveform signal simulation – sine waveform, simulating signal of oxygen sensor, mass air flow, injector, throttle position and other.
• S2-2 Sensorbox is specially developed for diagnosing/simulating sensor faults. It mainly includes “Sensor”, “ Actuator”, “Defined/Drawn”, “Timing Waveform“ and “ multimeter”.

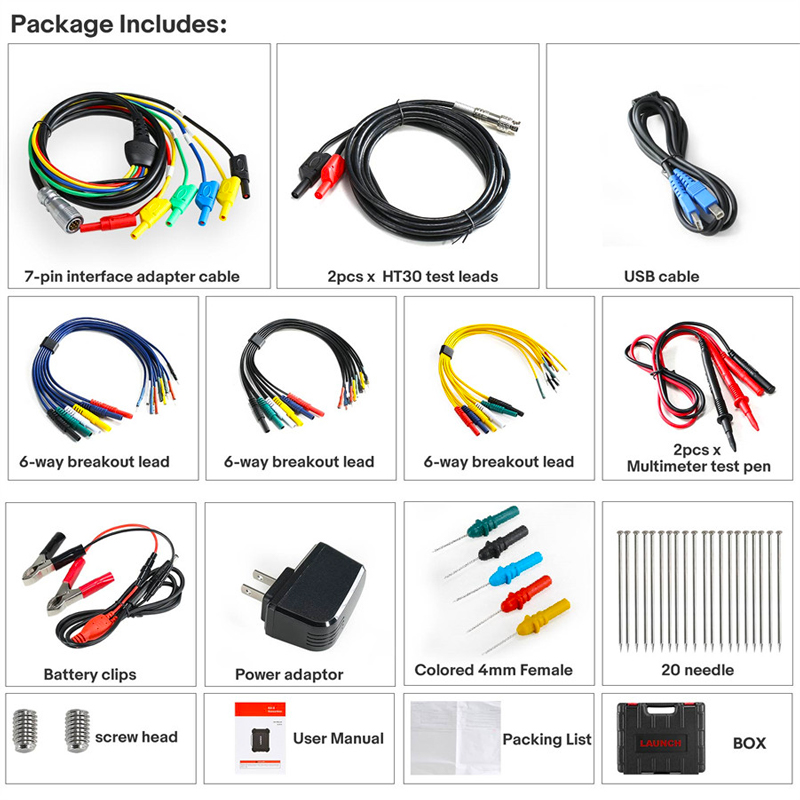

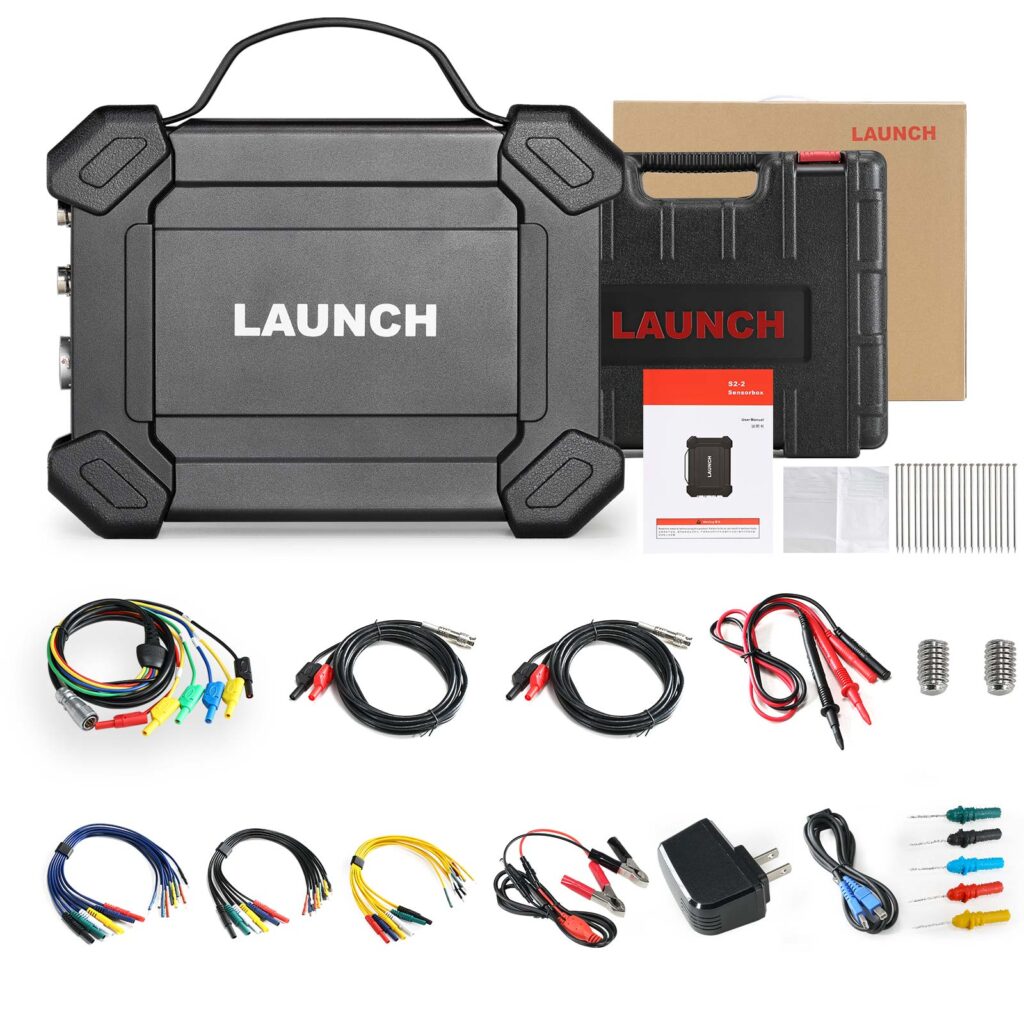

Launch Sensor S2-2 2 box Features

• Contains an integrated library of standard waveforms

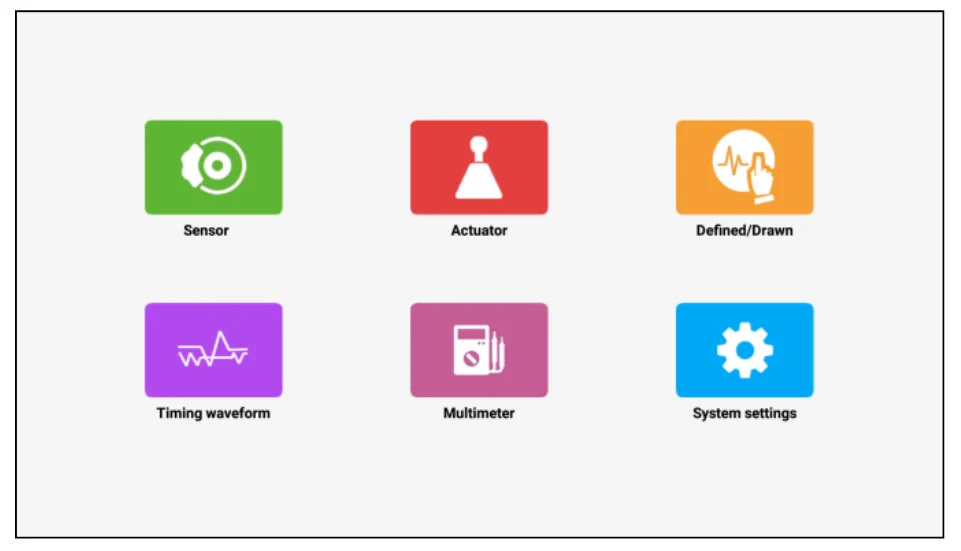

• One click to enters the intuitive menu of sensor, actuator, defined/drawn the waveform, timing waveform, multimeter, system settings.
• Simulate working condition of sensors without replacing parts

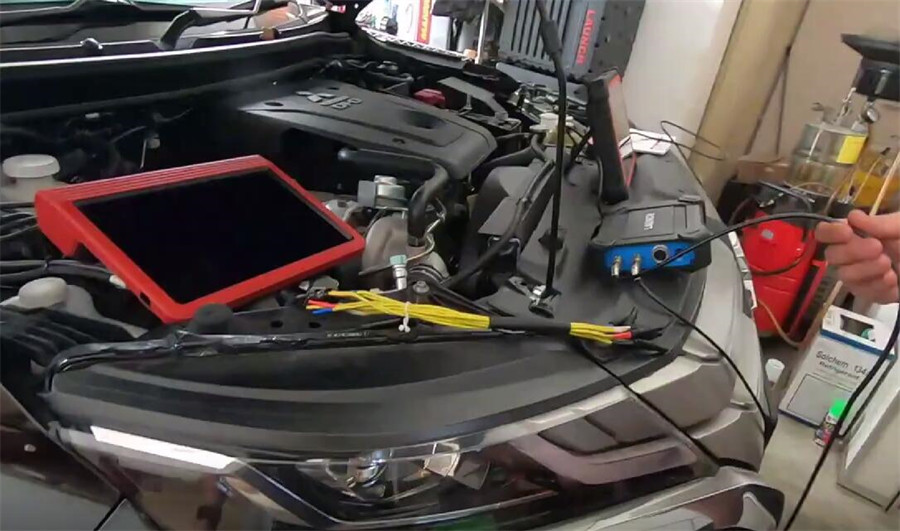

  Throttle & Pedal Sensor

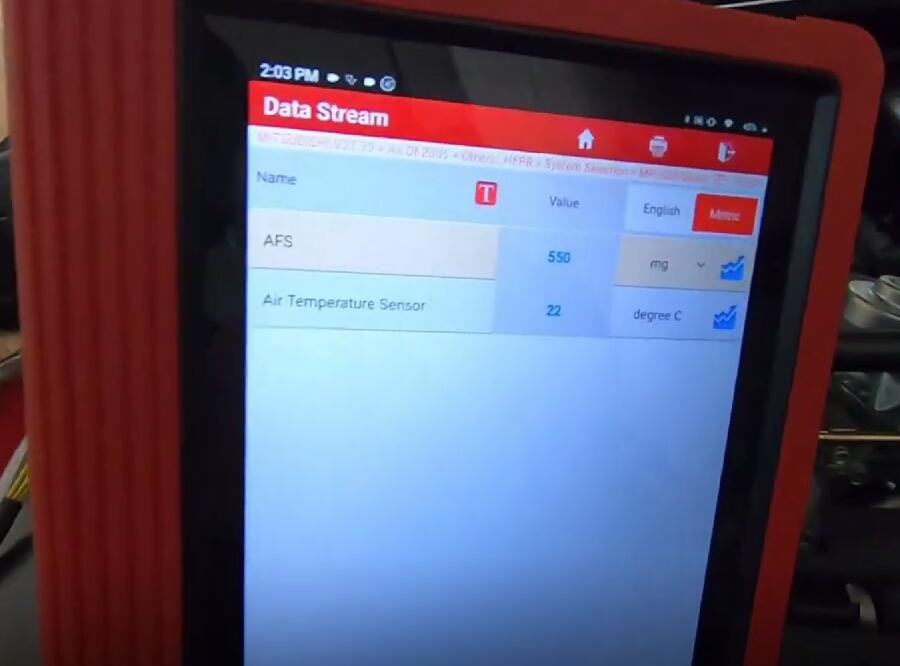

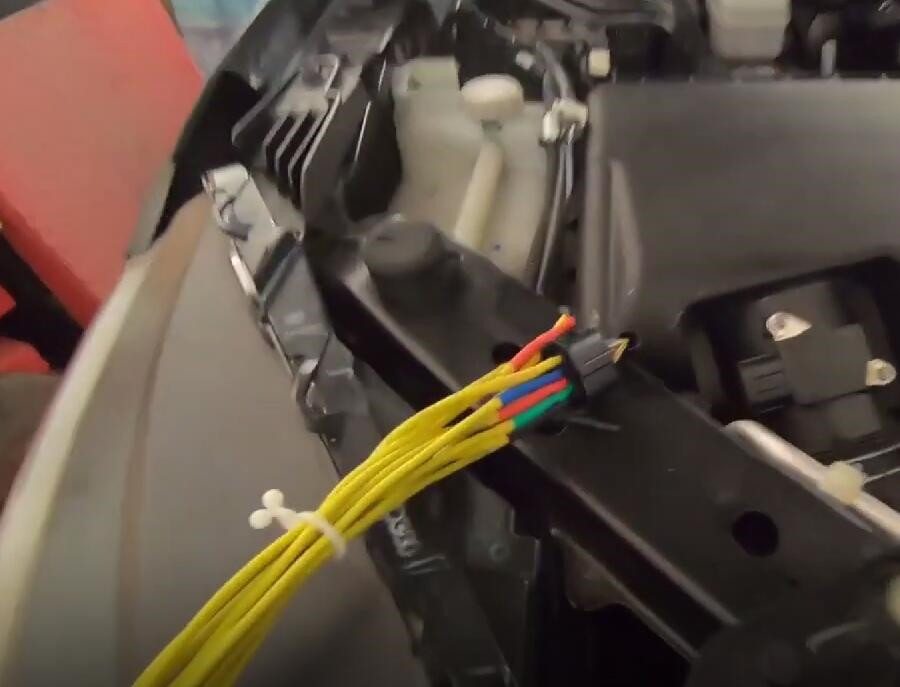

  Airflow Meters
  Oxygen Sensor
  Temperature Sensor
  EGR Sensor
  Injectors Sensor
  Crank
  Cam sensors inductive & hall

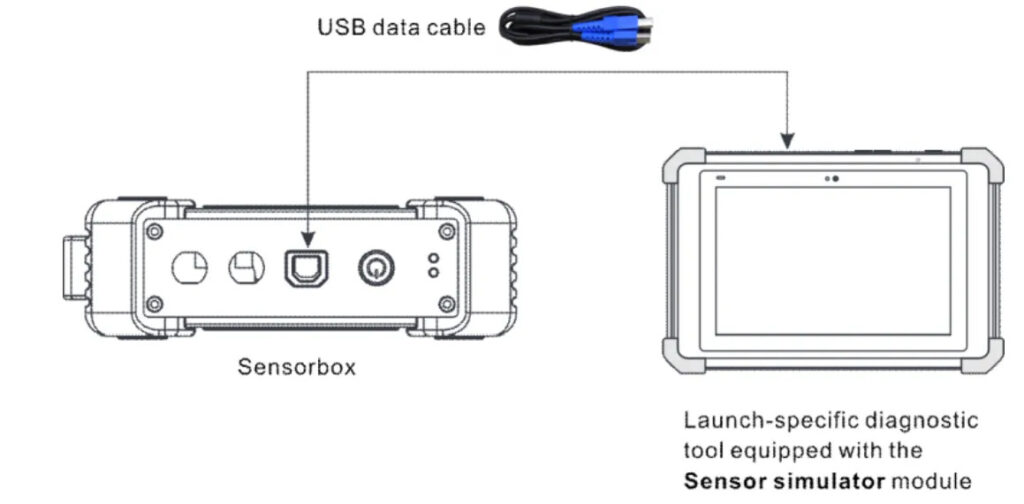

Compatible with DBScar VII Device

• X431 deice:  X431 pro 5, PRO3S+ V5.0, V+, X431 Pro3 APEX, X431 PRO5, PRO DYNO, PROS V5.0, X431 PRO TT, X431 V+ 5.0 (PRO3), Pro3 ACE, X431 PRO ELITE, PRO3S+ SmartLink HD, PRO3 V+ Elite, X-431 PAD III V2.0 and  PAD VII
• IMMO Series: IMMO Plus,  IMMO Elite,
• PAD Series: PAD VII Elite ,PAD V Elite,
• Creader Series: CRP919X BT, CRP919E BT

Defined

• Waveform: There are 9 waveforms to choose; Forward sine wave, reverse sine wave, forward square wave, reverse square wave, medium voltage, straight line, high / low voltage straight line, triangle wave, and trapezoidal wave.
• Frequency: Set the frequency of the selected waveform.
• Amplitude: Set the amplitude of the selected waveform.
• Offset: Set the offset of the selected waveform.
• Phase: Set the phase of the selected waveform.
• Duty cycle: Set the duty cycle of the selected waveform.
• Signal sync: Can cause CH1 and CH2 to output signals at the same time.

Hand-drawn

• Total frame: 1-3 (optional). Indicate the total number of output points
• Generally, one waveform is composed of 100 points. The values 1-3 indicate that you can select 100, 200, or 300 points to form a waveform.
• Edit frame: You can edit a single frame or edit all
• Waveform: You can select a preset waveform and place it in the hand-drawing area
• Frequency: Frequency of a single frame (for 3-frame output, the total frequency is the set frequency/3)
• Amplitude: Amplitude of the output waveform
• Offset: Offset of the output waveform

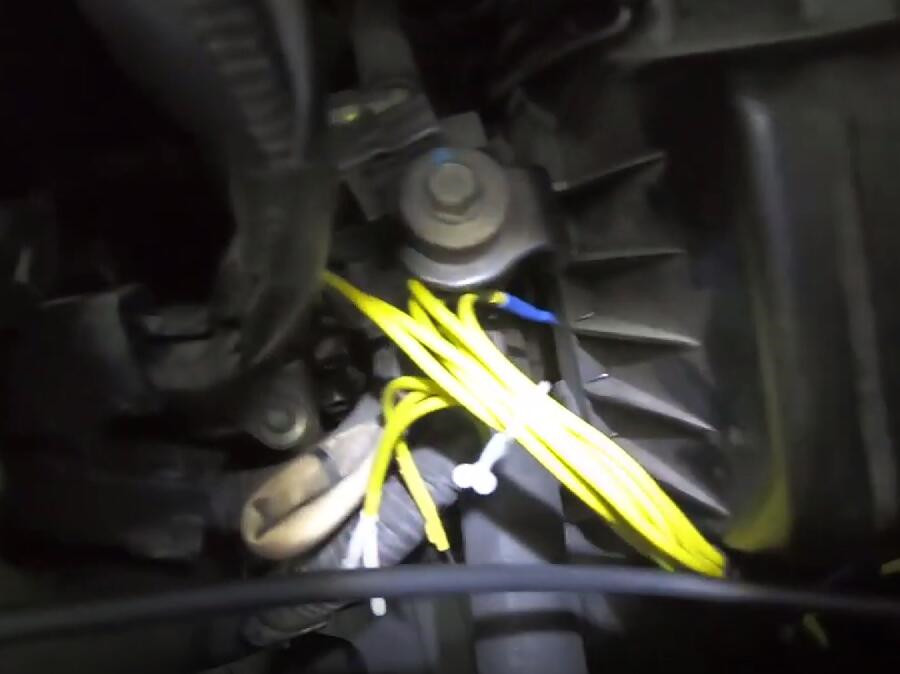

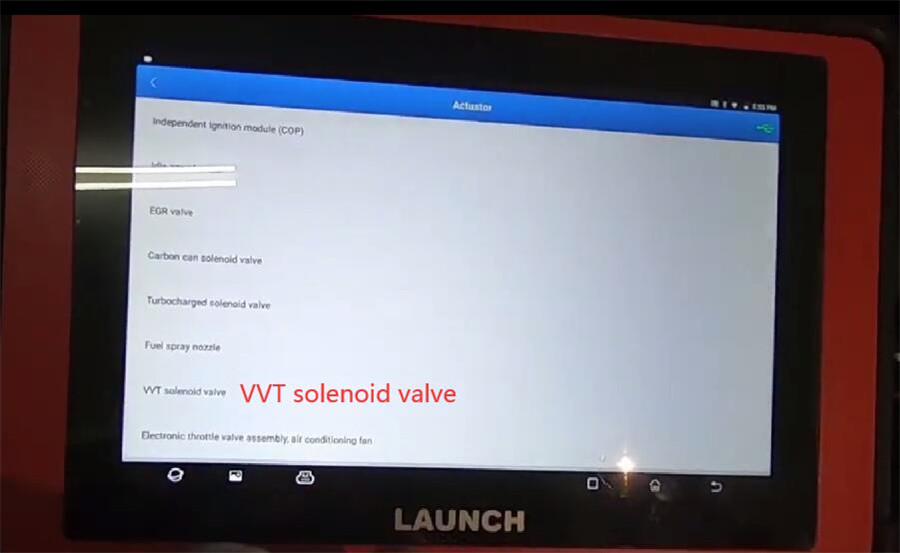

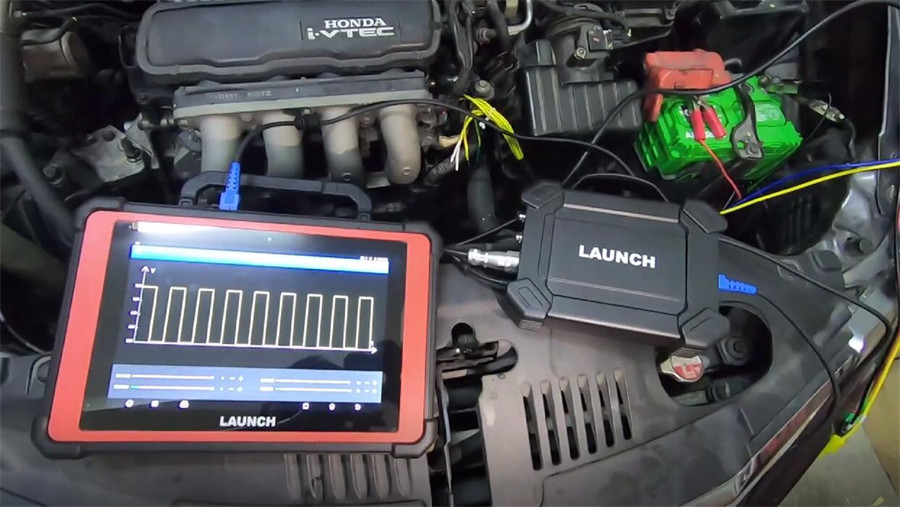

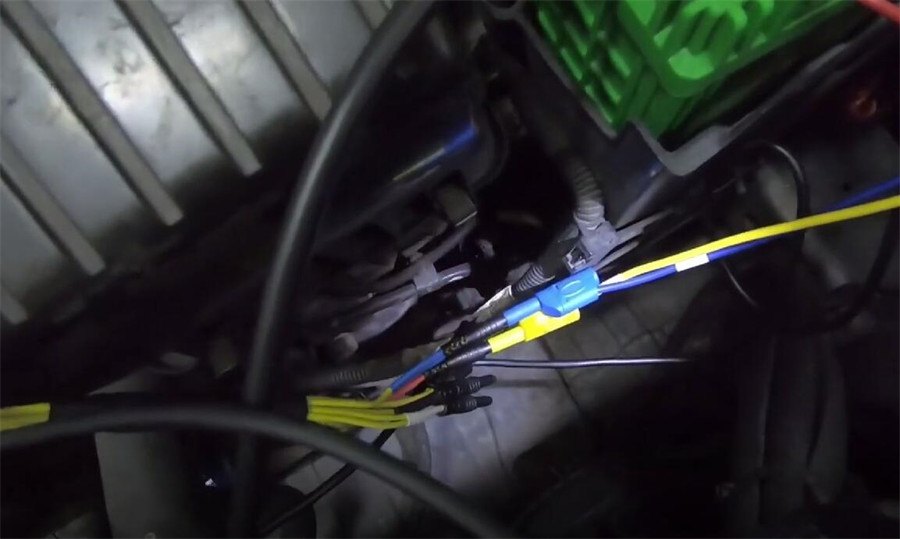

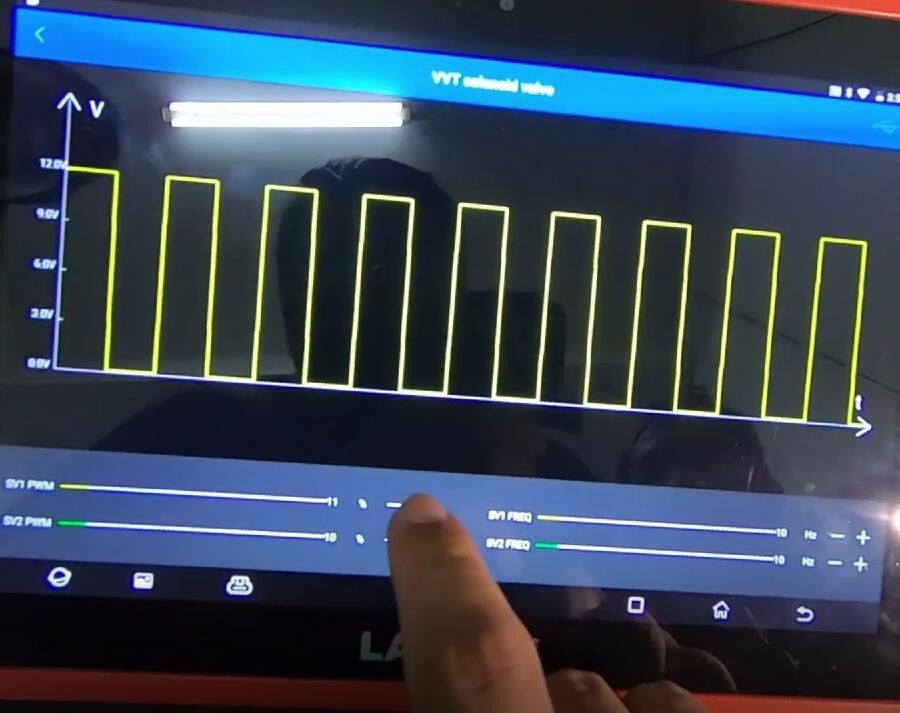

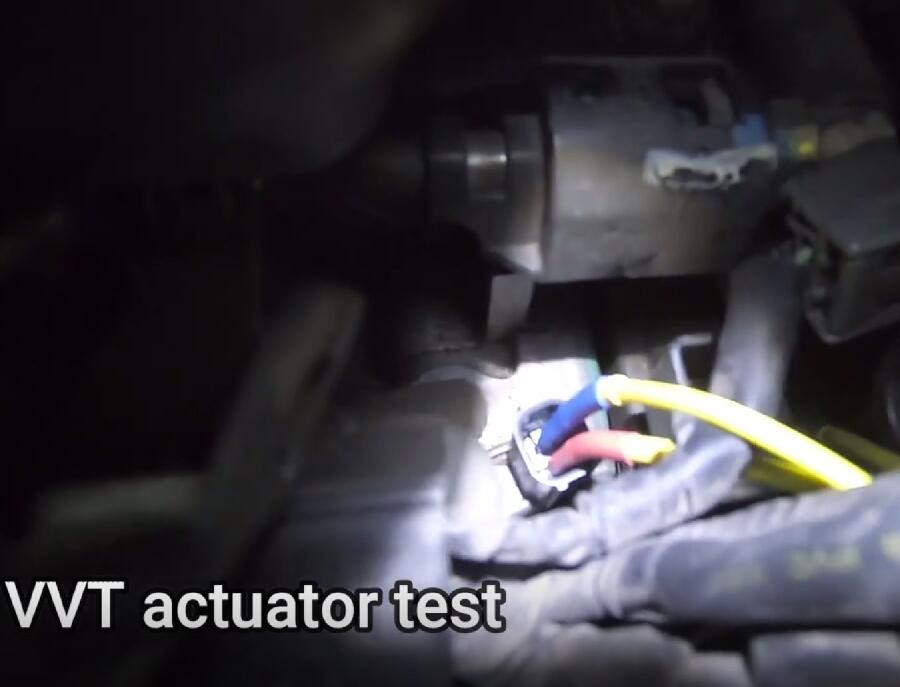

Launch S2-2 SensorBox Functions:
